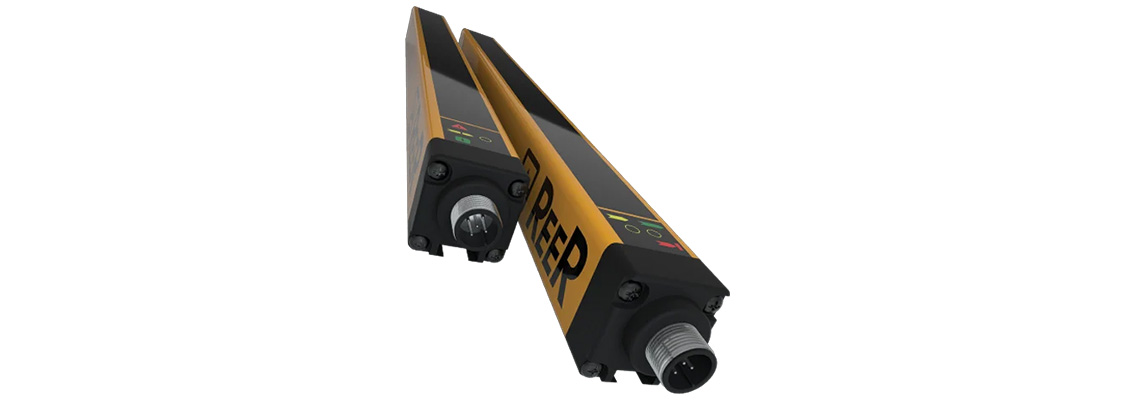

EOS2 is a compact Safety light curtain range with competitive performance and innovative features. Includes models with integrated Safety functions such as self-monitoring static outputs, control of external contactors (EDM), and selectable automatic or manual restart. 2 Safety PNP static outputs. Easy connection and installation thanks to the M12 connectors and the use of unshielded cables up to 100 meters.
| Features: | EDM Automatic or Manual Start/Restart Cascade connection |
| Safety Level: | Type 4 - PL e |
| Safety level (SIL / PL): | Type 4 - SILCL 3 - PL e - Cat. 4 |
| Operating temperature (°C): | From -30 to 55 for all models with range up to 12 m From -20 to 55 for 14 mm resolution models |
| Power supply (VDC): | 24 ± 20% |
| Response time (ms): | See the technical manual |
| Signalling: | LEDs for light curtains status and diagnostic |
| Resolution: | 20, 30, 40, 50, 90, MULTI-BEAM |
| Height of controlled area (mm): | 160 ... 2260 |
| Operating Range (m): | 14mm Models - Up to 6m All Other Models - Up to 12m High Range Models - up to 20m |
