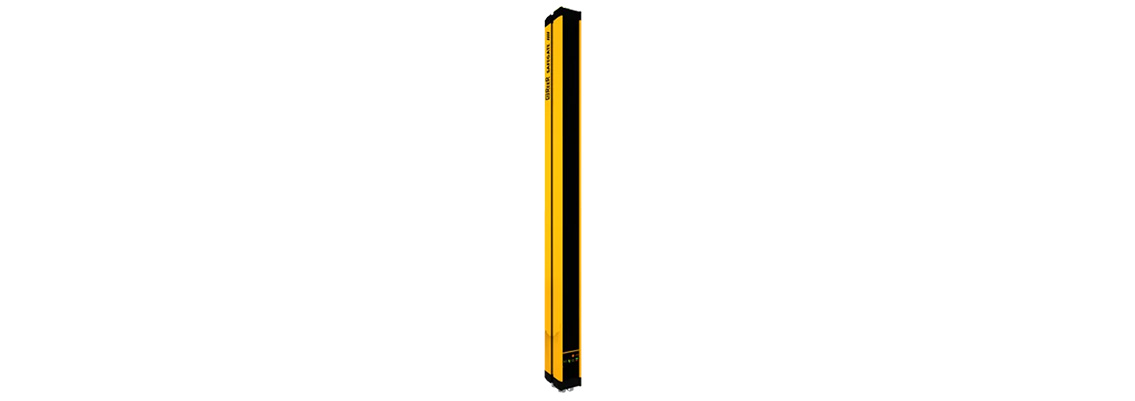

Safety light curtains with integrated Muting function for the protection of high-risk industrial applications, in particular those requiring a highlevel of integration of the muting functions. SAFEGATE guarantees the integration of the muting sensors that can be connected directly to the Safety light curtain. Programmable models (SMPO) functional parameters configuration can be managed via Safegate Configuration Software (SCS)
| Features: | EDM Automatic or Manual Start/Restart Muting Function Integrated Muting Lamp |
| Safety Level: | Type 4 - PL e |
| Safety level (SIL / PL): | Type 4 - SILCL 3 - PL e - Cat. 4 |
| Operating temperature (°C): | From -30 to 55 for all models with range up to 12 m From -20 to 55 for 14 mm resolution models |
| Power supply (VDC): | 24 ± 20% |
| Response time (ms): | See the technical manual |
| Signalling: | LEDs for light curtains status and diagnostic |
| Resolution: | 14, 30, 40, MULTI-BEAM |
| Height of controlled area (mm): | 310 ... 2260 |
| Operating Range (m): | TRXd Models - Up to 8m Emit./Rece. Models - Up to 12m Long Range Models - up to 80m |
