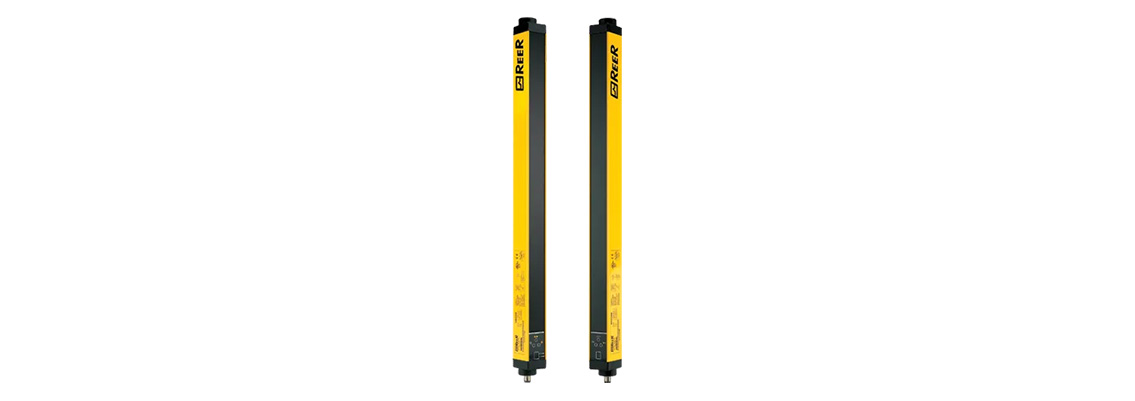

The Admiral serie of Safety light curtains, with integrated Blanking functions, is the ideal solution for the protection of the majority of high-risk industrial applications. Long Range models with 2, 3 and 4 allow beams reach a max. of 60 m, while the Dual beams models reaches the max. of 80 m.
| Features: | EDM Automatic or Manual Start/Restart Cascade connection Blanking Function |
| Safety Level: | Type 4 - PL e |
| Safety level (SIL / PL): | Type 4 - SILCL 3 - PL e - Cat. 4 |
| Operating temperature (°C): | From -30 to 55 for all models with range up to 12 m From -20 to 55 for 14 mm resolution models |
| Power supply (VDC): | 24 ± 20% |
| Response time (ms): | See the technical manual |
| Signalling: | LEDs for light curtains status and diagnostic |
| Resolution: | 14, 20, 30, 40, 50, 90, MULTI-BEAM |
| Height of controlled area (mm): | 160 ... 2260 |
| Operating Range (m): | Standard Models - Up to 18m Long Range Models - Up to 60m Dual-beam Models - up to 80m |
