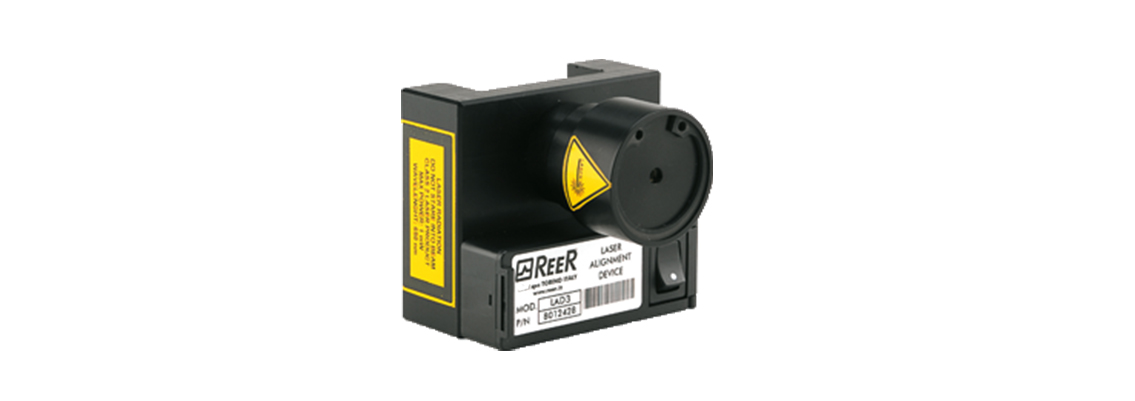

The LAD laser alignement device makes it possible to obtain a fast and reliable optical alignment of the ReeR safety light curtains of the EOS4 and EOS2, Admiral, Vision, Micron, Metron and Janus series; they are also compatible with the use of the FMC floor mounting columns.
The LAD devices emit a laser beam with visible red light with useful range up to 100 m.
| Light source: | Laser diode - wave lenght 650 nm |
| Class light source: | 1 |
| Range (m): | 100 |
| Beam divergence (mrd): | 0,5 |
| Max. power(mW): | 1 |
| Power supply (VDC): | 3 (2 AAA batteries) |
| Fastening: | Quick to th light curtains |
| Dimensions h x w x d (mm): | 117 x 48 x 80 - LAD 2 and LAD 4 70 x 78 x 70 - LAD 3 |
