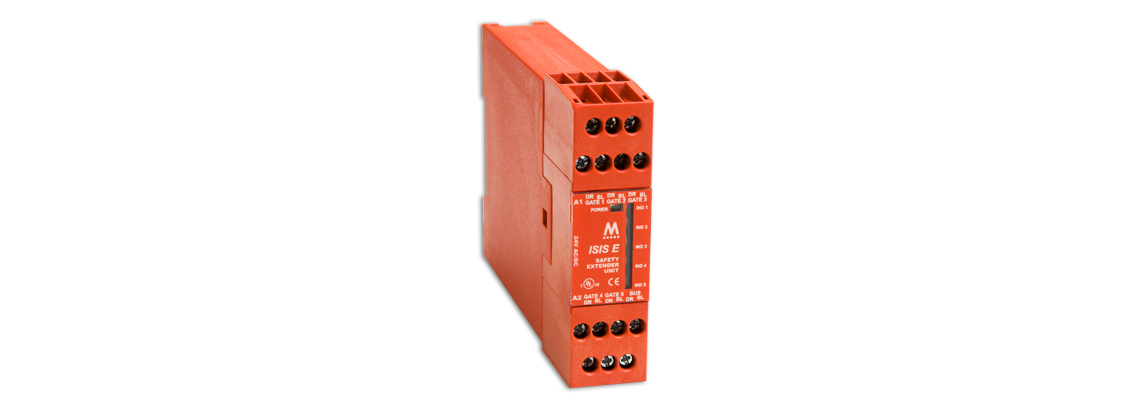

The ISIS-E Extender module provides 5 safety switch inputs to an ISIS control unit (ISIS-2 or ISIS-4). Multiple ISIS-E extender modules can be connected together into one system, making it possible to monitor large numbers of machine guards, or to add gates to an existing system at a later date. The ISIS-E requires 24 VAC/DC supply and a simple 2-wire connection from the ISIS-E to any active ISIS safety switch input. LED indication is available from all gate switches showing guard status.
| Control Category: | EN 954 CAT 3, SIL 3, PL-e |
| Supply Voltage: | 24 VAC/DC |
| Power Consumption: | 3 VA |
| Safety Switch Inputs: | 5 (can build systems to 30 gates, need a main ISIS-2 or ISIS-4 Control Unit |
| Mounting: | 35 mm DIN Rail |
| IP Rating: | Housing IP40, Terminal IP20 |
| Indication: | Guard Selected and Status Indication |
| Features: | Simple 2-wire connection to switches and main unit |
| Approval: | TUV Category 3, UL 508 Industrial Control Equipment, CE |
